D643H氣動法蘭硬密封蝶閥產品詳情
D643H氣動法蘭硬密封蝶閥廣泛適用于電站供熱系統和催化裂化主風機道管系統和鋼鐵、冶金、化工等工業系統以及環保、水處理、高層建筑給水排水管路上作切斷或調節流量作用.
D643H氣動法蘭硬密封蝶閥技術范圍
注：系列蝶閥結構長度及連接法蘭尺寸可根據用戶要求設計制造。

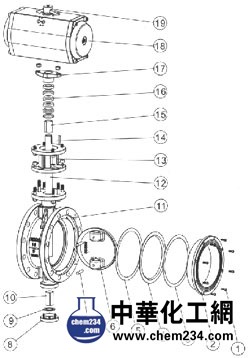

D643H氣動法蘭硬密封蝶閥主要零件材質表
D643H氣動法蘭硬密封蝶閥

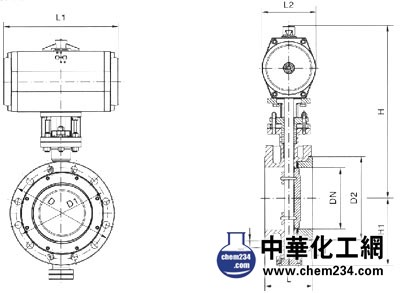

D643H氣動法蘭硬密封蝶閥主要外形及連接尺寸
| DN | 外形尺寸 Outline Size |
連接尺寸 Connec ting Size |
執行器型號 Actuator Model |
||||||||
| L | L1 | L2 | H | H1 | D | D1 | D2 | f | n-φd | ||
| 50 | 108 | 164/214 | 75/91 | 277/205 | 65 | 165 | 125 | 99 | 3 | 4-φ18 | GTD65/GTE80 |
| 65 | 112 | 164/214 | 75/91 | 287/315 | 75 | 185 | 145 | 118 | 3 | 4-φ18 | GTD65/GTE80 |
| 80 | 114 | 190/246 | 91/101 | 365/375 | 85 | 200 | 160 | 132 | 3 | 8-φ18 | GTD80/GTE90 |
| 100 | 127 | 210/295 | 101/112 | 420/436 | 130 | 220 | 180 | 156 | 3 | 8-φ18 | GTD90/GTE100 |
| 125 | 140 | 247/398 | 112/139 | 436/462 | 175 | 250 | 210 | 184 | 3 | 8-φ18 | GTD100/GTE125 |
| 150 | 140 | 308/478 | 139/176 | 466/543 | 190 | 285 | 240 | 211 | 3 | 8-φ22 | GTD125/GTE160 |
| 200 | 152 | 378/724 | 176/228 | 593/665 | 215 | 340 | 295 | 266 | 3 | 12-φ22 | GTD160/GTE210 |
| 250 | 165 | 432/928 | 206/275 | 682/752 | 265 | 405 | 355 | 319 | 3 | 12-φ26 | GTD190/255 |
| 300 | 178 | 524/928 | 228/275 | 725/772 | 305 | 460 | 410 | 370 | 4 | 12-φ26 | GTD210/GTE255 |
| 350 | 190 | 648/1033 | 275/324 | 832/880 | 340 | 520 | 480 | 429 | 4 | 16-φ26 | GTD255/GTE300 |
| 400 | 216 | 648/1129 | 275/380 | 862/968 | 360 | 580 | 525 | 480 | 4 | 16-φ30 | GTD255/GTE350 |
| 450 | 222 | 715/1845 | 324/527 | 945/1005 | 400 | 640 | 585 | 548 | 4 | 20-φ30 | GTD300/AW28S |
| 500 | 229 | 795/1845 | 380/527 | 1058/1060 | 430 | 715 | 650 | 609 | 4 | 20-φ33 | GTD350/AW28S |
| 600 | 267 | 795/2605 | 380/545 | 1108/1195 | 490 | 840 | 770 | 720 | 5 | 20-φ36 | GTD350/AW35S |
| 700 | 292 | 1380/2605 | 1170/1255 | 1170/1255 | 555 | 910 | 840 | 794 | 5 | 24-φ36 | AW28/AW35S |
| 800 | 318 | 1860/2605 | 1325/1365 | 1325/1365 | 620 | 1025 | 950 | 901 | 5 | 24-φ39 | AW35/AW40S |
| 序號 NO |
零件名稱 Accessory name |
材質 Material |
||
| C | P | R | ||
| 1 | 內六角螺絲 Mild Sleel Hex Socket Screw |
1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 2 | 閥蓋 Cover |
WCB | 1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 3 | 墊片 Gasket |
不銹鋼+柔性石墨 Stainless Steel+Graphite |
||
| 4 | 閥座 Seat |
1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 5 | 墊片 Gasket |
不銹鋼+柔性石墨 Stainless Steel+Graphite |
||
| 6 | 蝶板 Butterfly Plate |
WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 7 | 圓柱削 Straight Pin |
45 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 8 | 下蓋 Bottom Cover |
WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 9 | 墊片 Gasket |
不銹鋼+柔性石墨 Stainless Steel+Graphite |
||
| 10 | 襯套 Bushing |
PTFE+不銹鋼 PTFE+Stainless Steel |
||
| 11 | 閥體 Body |
WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 12 | 閥桿 Stem |
1Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 13 | 支架 Yoke |
WCB | ||
| 14 | 鍵 Key |
45 | ||
| 15 | 襯套 Bushing |
PTFE+不銹鋼 PTFE+Stainless Steel |
||
| 16 | 填料 Packing |
柔性石墨 Graphite |
||
| 17 | 壓蓋 Gland |
WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Ti |
| 18 | 位置指示器 Location lndicator |
塑料 Plactic |
||
| 設計依據 Design reference |
GB標準 | ANSI標準 | |
| 設計標準 Design standrd |
GB/12237 | ANSI B16.34 | |
| 結構長度 Face To face |
對夾連接 Wafer connecting |
GB/12221 | ANSI B16.10 |
| 連接法蘭尺寸 Connecting Flange Size |
GB/9113、JB/T79 | ANSI B16.5 | |
| 試驗和檢驗 Test＆inspection |
JB/T9002 | API598 | |
